Ball Management Systems - BMS
Develop a cost-efficient and easy-to-operate range with our BMS, Ball Management System. Combining the picking, washing, and dispensing into one system, our BMS will suit any facility, from the smallest country club to the largest commercial range. Improve core business and customer relations by automating your range through our BMS IT-solutions. We have already helped golf clubs and ranges around the world operate a more carefree range through our BMS.
Central receiving
units provides
increased revenue.
Our BMS system can be purchased with a fully or semiautomatic setup, depending on your need. Using advanced PLC-coding we program our control-box to deliver balls from the storage area to all receiving units, which can be both ball dispensers and/or hoppers.
Our blower-system, using compressed air and flexible hoses, feeds balls from the remote washing/storage area to single or multiple dispensers. Having a washer/storage area in a remote location is strategic for design and
improves safety for the staff.
Our BMS system can be purchased with a fully or semiautomatic setup, depending on your need. Using advanced PLC-coding we program our control-box to deliver balls from the storage area to all receiving units, which can be both ball dispensers and/or hoppers.

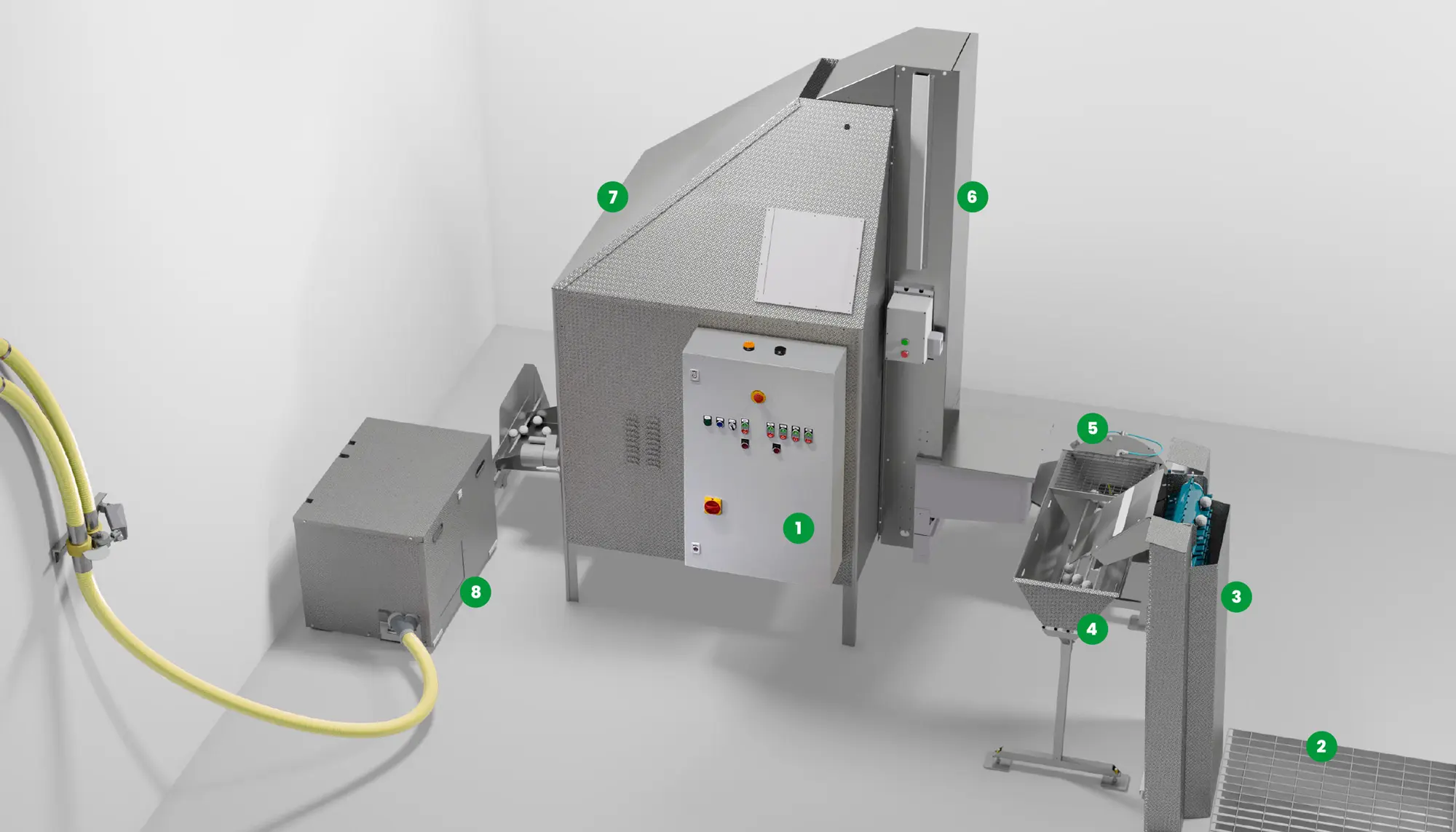

5. Hopper elevator
2.3m high and transports washed balls into the
Hopper.
Read more
6. Hopper
Stores balls and available
in several sizes from 15,000-50,000 balls.
Read more
7. Blower-system
Receives balls from Hopper and blows them to the receiving units.
Read more
8. Receiving units
Hoppers/Dispensers receives blown balls – can be set to automatically call for balls when the ball-level is low.
Read more
Because no two ranges are the same, we take pride in creating a customized solution just for you.
Project Management
Range Servant is experienced in creating and following projects. From sales to installation, you can trust Range Servant to see your project through to completion.
1. PRE-STUDY. Set expectations for project.
2. PLACE ORDER
3. MANUFACTURE PRODUCTS
4. SHIPPING OF PRODUCTS
5. DELIVERY AND INSTALLATION
Pre-Study
Our pre-studies are designed so that all expectations and goals are met. In the pre-study, we will look closely at your site, identify its capacity, function, and include a conceptual design to easily visualize what the result will look like. Not only do we want to deliver products to the project, but we also want to identify opportunities and reduce risks. Our experts will then create a checklist for you, with all the correct logistical and technical specifications so that nothing is left to chance once we are ready to install our products. If you decide to use us as your supplier, we will subtract the cost of the pre-study from the placed order resulting in no extra cost to you.
If you decide to use another supplier, the pre-study that you have purchased will be a valuable tool for your future decisions.
For more information about the cost of a pre-study, call us at +46 (0)35 10 92 40 or send an email to: sales@rangeservant.com
Our system from Range Servant is a prerequisite for a cost-effective range operation. The fact that it is incredibly reliable makes it even better. World class!

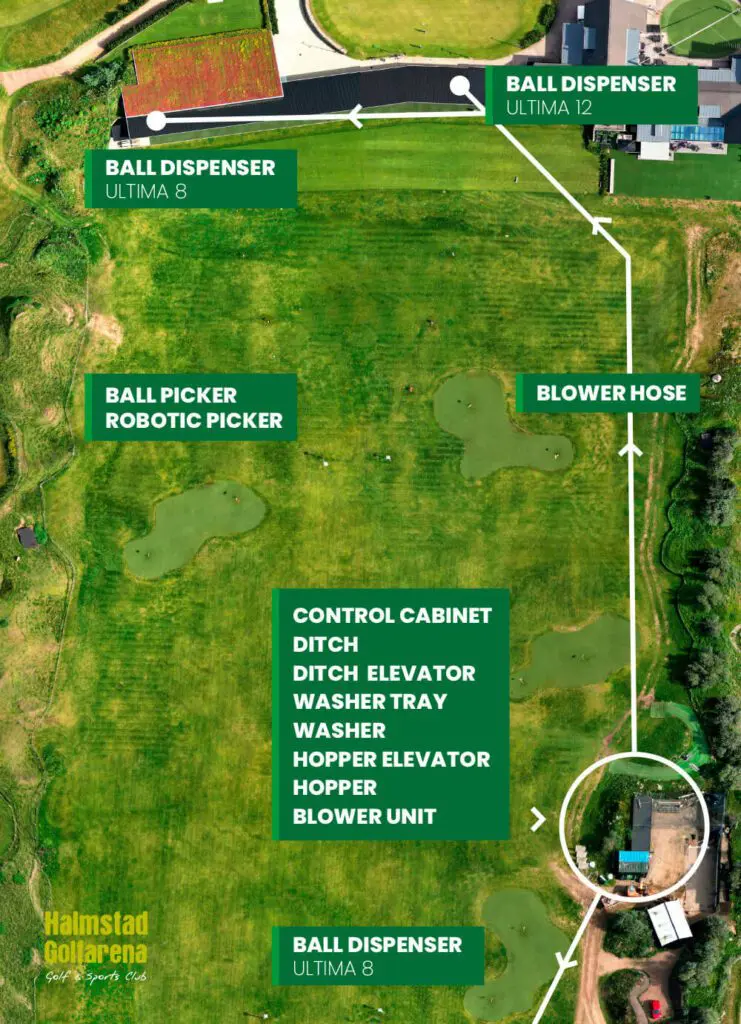

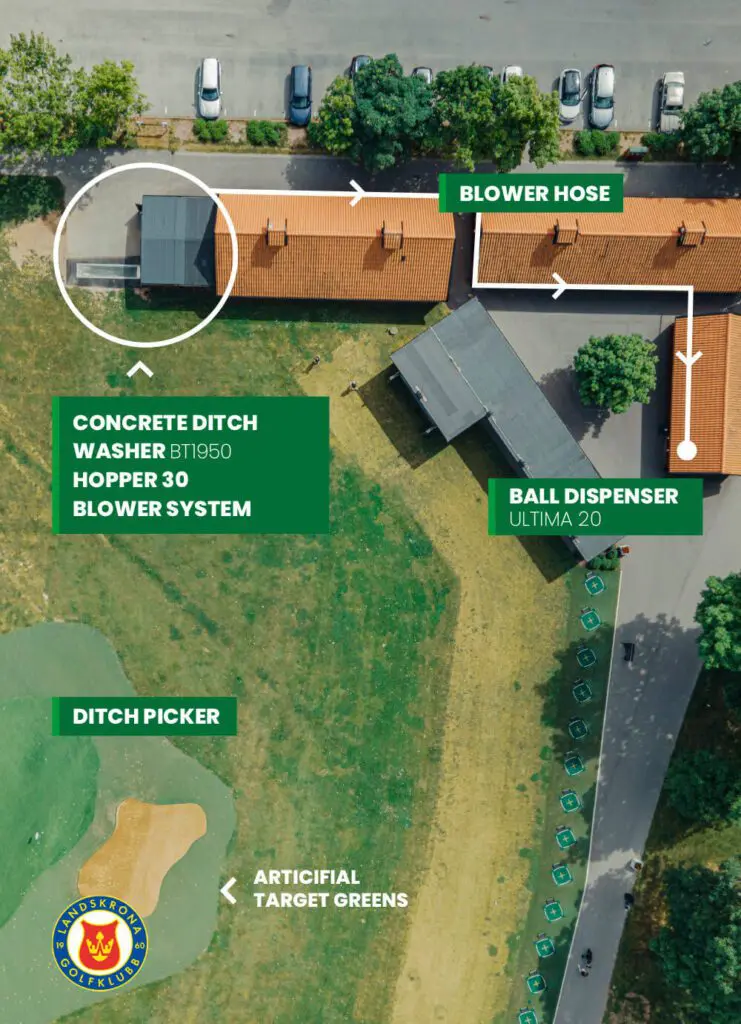

BMS examples
Ball Management Systems Products
-
Hopper
See Variations This product has multiple variants. The options may be chosen on the product page -
Blower
See Variations This product has multiple variants. The options may be chosen on the product page -
Golf Ball Ditch – Plastic
-
Golf Ball Ditch – Concrete
-
Control Cabinet Midi V1
-
Control Cabinet Max V1
